PIR Sensor LED Strip Light Single Version

Single Bed Motion Sensor LED Light Strip Kit (CL-CDD-1)

Ensure a safe and gentle nighttime experience with the Single Bed Motion Sensor LED Light Strip Kit (Model: CL-CDD-1) from Shenzhen Gerolux Technology Co., Ltd. Specially engineered for single beds, twin beds, and children’s room setups, this smart motion-activated lighting kit casts a soothing warm glow under the bed frame the moment movement is detected—providing clear guidance without harsh glares.

Key Features & Advantages

• Intelligent Motion & Light Sensor: Combines a PIR body motion sensor with a photocell ambient light detector. It automatically activates at night upon movement and remains off during the day to save energy.

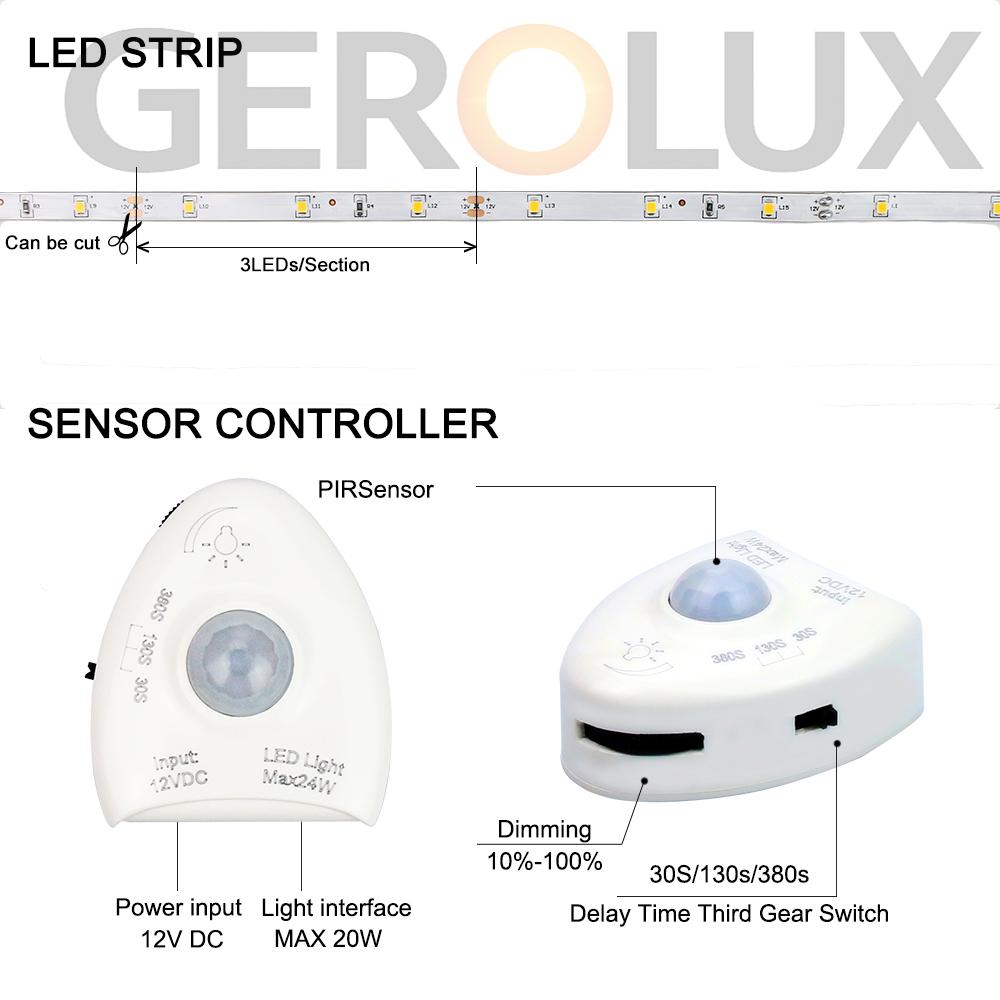

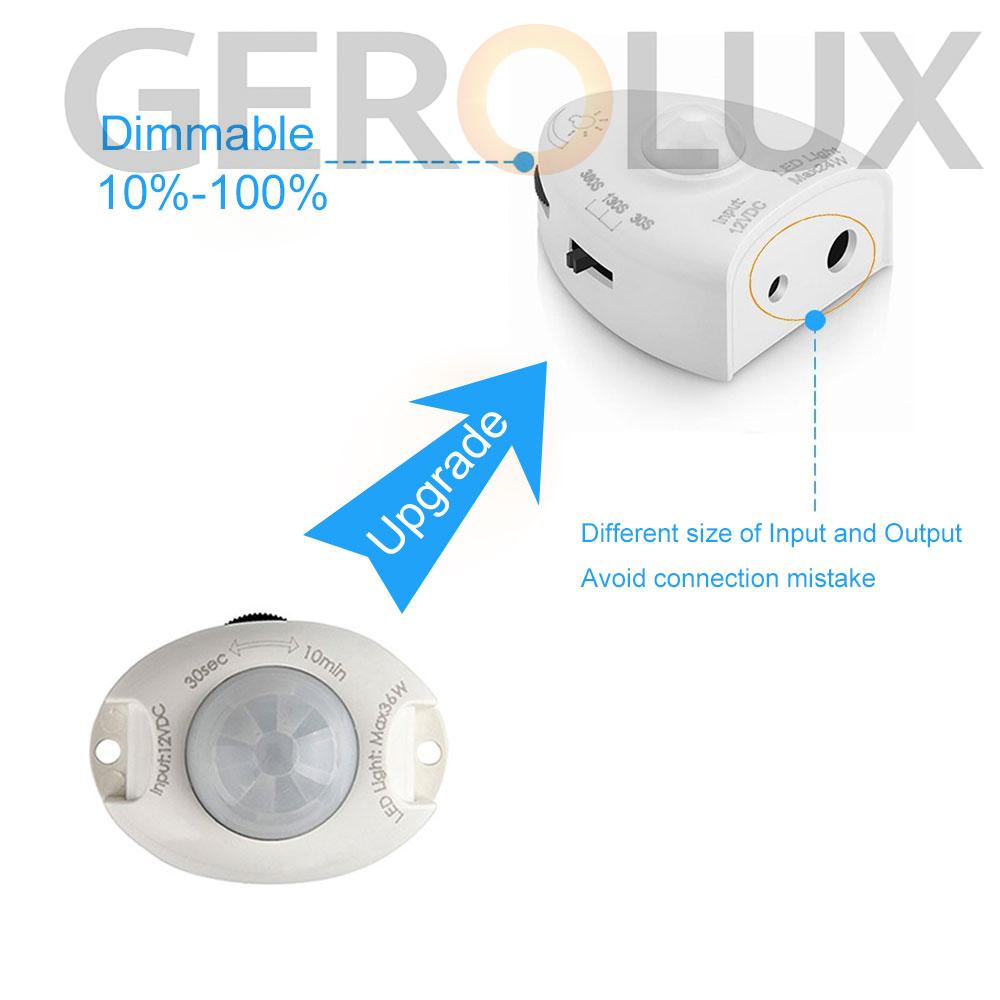

• Stepless Dimming Control (10% - 100%): Integrated smooth dimming roller on the sensor switch allows effortless brightness adjustment to suit different nighttime preferences.

• 3-Gear Delay Timer Settings: Built-in 3-stage delay timer switch (30 seconds / 130 seconds / 380 seconds) lets users customize how long the light stays on after motion stops.

• Soft & Thoughtful Illumination: Creates a gentle, glare-free ambient light under the bed, preventing nighttime trips and falls without waking others in the room.

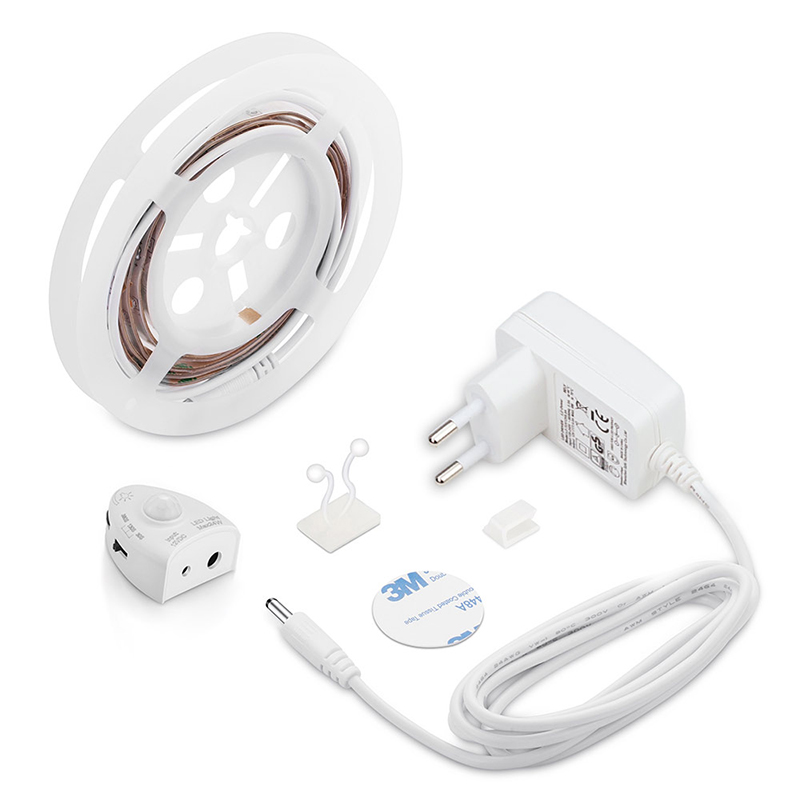

• All-in-One Single Bed Kit: Includes one 1.5m high-brightness LED light strip, one PIR sensor switch, a 12V power adapter, and wire mounting accessories for instant, tool-free installation.

• Factory Quality & EU Compliance: Fully certified with CE and RoHS standards. Packaged in strict compliance with SGS-verified EU Packaging and Packaging Waste Regulation (PPWR) requirements.




Technical Specifications

CL-CDD-1 Single Bed Kit Package Contents

Quick & Easy Installation Guide

1. Timer & Brightness Setting: Adjust your desired shut-off delay time (30s/130s/380s) and brightness level on the sensor switch.

2. Surface Preparation: Thoroughly clean and wipe the surface under the bed frame before sticking.

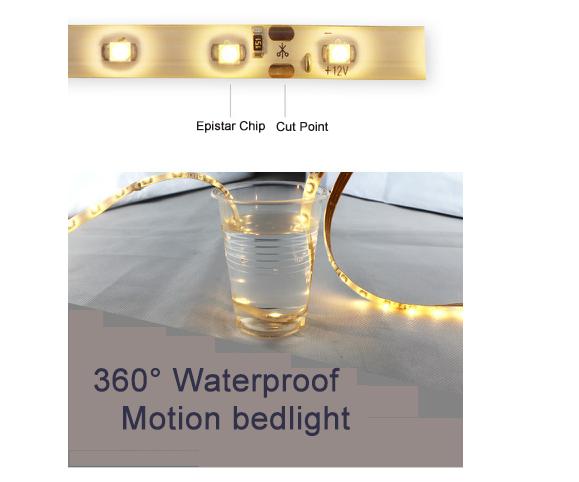

3. Connect Components: Plug the 1.5m LED strip into the PIR sensor switch, then connect the sensor to the 12V power adapter. (Strip can be cut along cut marks if needed).

4. Mount Strip & Sensor: Secure the sensor in a position that easily detects foot movement, peel off the 3M backing, and press the LED strip firmly onto the frame.

5. Power Up: Plug the adapter into a power socket. The sensor will automatically calibrate within 30 seconds.

OEM / ODM & B2B Customization Services

As a 12-year professional LED manufacturing factory in Shenzhen, Shenzhen Gerolux Technology Co., Ltd. provides comprehensive OEM/ODM solutions for global B2B buyers:

• Custom retail gift box designs and private label logo printing.

• Customized LED strip length, color temperature (CCT), and regional plug standards (EU/US/UK/AU).

• Fast sample production (3–5 days) with dependable volume manufacturing.

Contact us today at elva@gerolux.com to request single bed kit wholesale pricing, technical datasheets, or sample kits!
